Working on a WinForms project yesterday (MemphisSharp), I’ve encountered a weird, albeit well-known Visual Studio Designer problem.

I wanted to re-use the DialogSelectTransform component from COMMON_FORMS.

I’m already successfully using in another projects and it works perfectly.

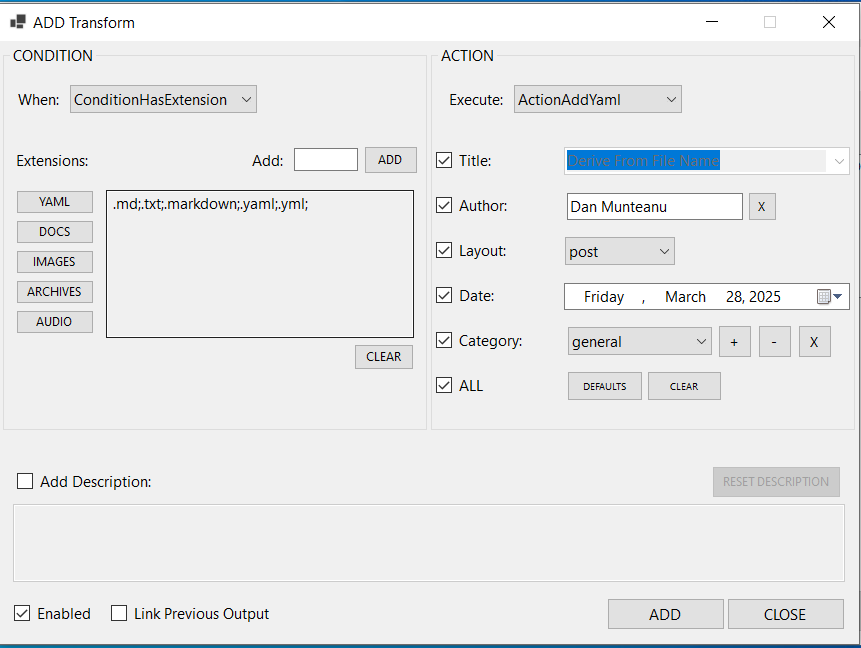

Here it is in action.


On the left, you configure a condition, (e.g. ConditionHasExtension).

And on the right, you select an action to apply when the condition is met. (e.g. ActionAddYaml to add yaml front-matter data to your files).

This dialog should be re-usable.

And I thought it was.

But, when I wanted to use it with a different set of Transforms, compilation failed.

Why?

Well, in MASS_YAML, I’m adding and editing string transforms - Transform<string>.

And in MEMPHIS_SHARP, I wanted to edit Transform<Token>.

The actual class is generic - Transform<T>

So, I made the dialog class generic:

public partial class DialogSelectTransform<T> : Form

Simple, no?

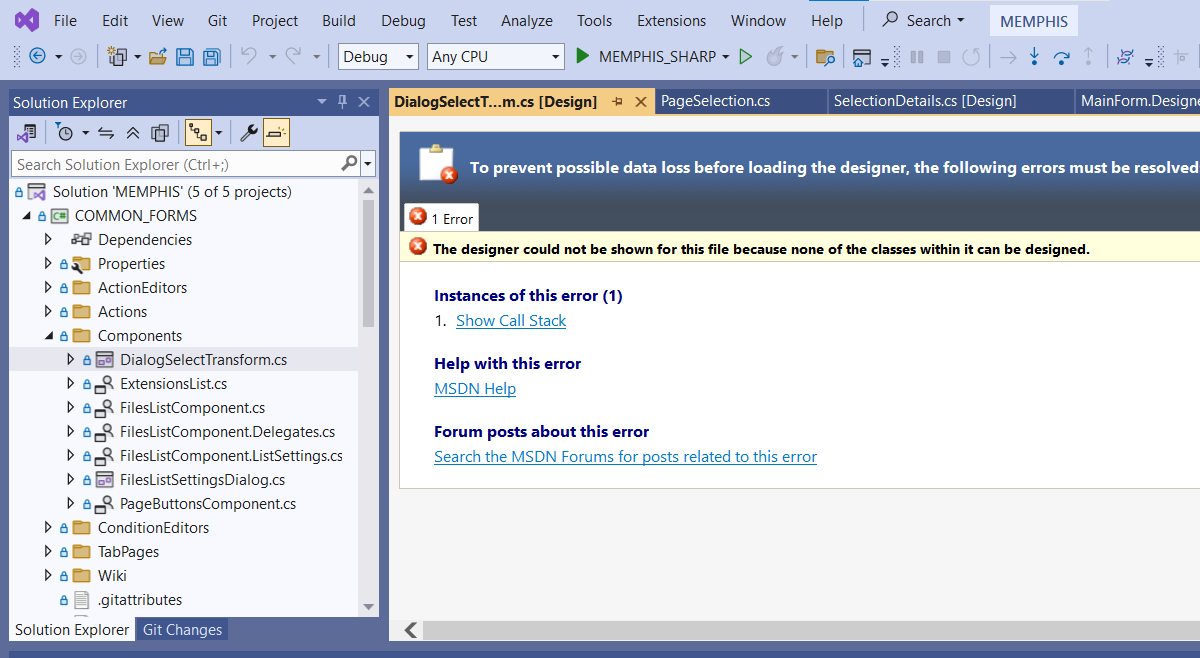

Wrong:


Turns out, the Designer can’t edit generic classes, even if they inherit Form or UserControl.

Bummer.

Now what?

Well, ChatGPT suggested I create a concrete class DialogSelectTransform<string> which inherits from the generic base class DialogSelectTransform<T>.

And that should work.

No, it didn’t. Bad GPT!

Although ChatGPT insisted it should, confidently.

But when I questioned it, it admitted he was wrong.

The approach wouldn’t work. I wonder who feeds it with data, honestly.

And if you question it, it says “you are right, it won’t work”.

Anyways, I can use the dialog with Transform<Token>

But I can’t edit it anymore.

So, I have to find a solution that allows me to still edit the dialog and keep the generic aspect of it.

Honestly, I’m up for the challenge!

Until next time.

Later edit: Apparently, if I remove the generic <T> argument from both DialogSelectTransform.cs and DialogSelectTransform.Designer.cs, the form will load and will be editable. And when I’m done, I just have to add the <T>’s back. Huh.
